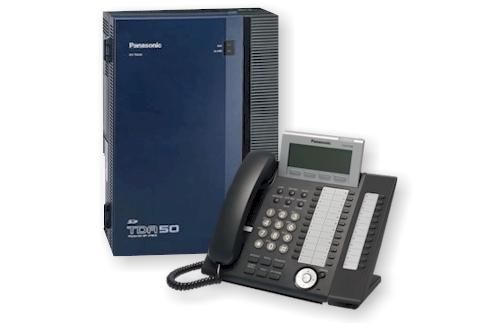

Panasonic KX-TDA50G IP PBX Telephone Systems from KX-TDA.com

KX-TDA50G - Big Bang for the Buck!

Competitive businesses need communication solutions that can change rapidly. The KX-TDA50G IP PBX helps keep your business on the cutting edge of telephony through the use of ongoing upgradability.

The KX-TDA50G is one model in Panasonic's mid-size IP PBX product line known as the "TDA Series." None of the cards in the TDA50G are interchangeable with any of the other TDA series PBXs. Features within the series are nearly identical with only the capacities being different.

The KX-TDA50G was introduced in the year 2000. Since then, it has undergone five (5) software revisions. The larger systems in the TDA series have been upgraded to the new KX-TDE series processor, which is our top-of-the-line, most feature-rich processor.

Panasonic KX-TDA50G offers state-of-the art wireless capability designed as part of the system instead of as add-on. The KX-TDA50G uses only one cabinet.

See Maximum System Capacity chart below for more detail.

Main Features

• SIP Trunking
• Analog (POTS) CO Line Trunking
• Caller ID (Name & Number)
• VoIP Gateway with QSIG (Enhanced System Networking)
• VoIP Extensions - KX-NT Panasonic Proprietary Models
• DECT Multi-Cell Wireless
• PC-Based Programming
• DXDP (Digital Extra Device Port)
• Automatic Route Selection (ARS)
• Toll Restriction
• Digital Voice Mail Integration
• Enhanced System Networking
• Uniform Call Distribution (UCD)
• Direct Inward System Access (DISA)

How and where to Purchase

The KX-TDA50G is a model serviced only by Panasonic Certified Dealers. It must be registered and requires activation keys that can only be provided by a Panasonic Certified Dealer in good standing. Panasonic will not activate or reactivate these systems directly for the end-user. Only dealers who have successfully completed the KX-TDA Technical Training course, have a valid KX-TDA certification number and meet the yearly purchase requirements outlined by Panasonic can activate these systems. To find Panasonic Certified Dealers worldwide or in your specific area go to Panasonic-America.com.

1 Main Processor Unit
1 Main Power Supply (*)
1 SD Card
1 Preinstalled, 4-circuit CO Trunk Card with Caller-ID (**)
1 Preinstalled, 4-circuit Digital Hybrid Line Card (4 DPT + 4 SLT) (**)
3 Free Large Universal Slots
2 Free Small Universal Slots
2 Free Options Slots

(*) The KX-TDA50G can use either 1 or 2 power supplies depending on how many devices are connected. In most cases, the Main Power Supply is all that is required. However, if a 2nd power supply is required due to the configuration, there is a "Power Supply No. 2" connection provided on the side of the PBX.

(**) Only the 1 CO Trunk Card with Caller-ID and 1 Digital Htbrid Line Card are preinstalled. All other expansion and option cards must be added as needed based on your specific configuration.

Maximum System Capacity

Maximum Number of Trunks

Not to Exceed Total


See Note 1


Maximum Number of Wired Extensions

Not to Exceed Total


See Note 2


Maximum Number of Wireless Extensions

Not to Exceed Total


See Note 3

Note 1: The maximum of 20 Trunks is a combination of 12 Analog CO Trunks and 8 SIP Trunks. Even though the maximum number of trunks is 20 and the maximum number of extensions is 56, you cannot realize both at the same time since you would run out of slots.

Note 2: The maximum of 56 wired extensions is reached by using XDP and DXDP. The Memory Expansion Card is needed in order to go past 24 digital extensions. Your Panasonic Certified Dealer will help you balance these maximums so as to optimize the system for future growth.

Note 3: A maximum of 28 Wiresless Extensions may be programmed into the KX-TDA50 system, provided you use Panasonic Proprietary Cellular-like Telephones and Panasonic Proprietary Cell Stations.
